Export Examples

Here is a listing of every ASCII file we currently export. Most of these examples you see here are in a CSV (comma separated values) format and have 4 decimal spots for the parts. This is the normal method of exporting parts out to machinery.



Note: You may have to scroll to the right to see the full detail of each export. The headers on Row 1 can be turned off as they may not work with some exports. (Remove Export Title Row checkbox in Settings > Network)



CNC-Router – This export requires that the CNC-Flag be set on a Door/Front in order to export.




CNC-RouterWProfiles – This export requires that the CNC-Flag be set on a Door/Front in order to export.

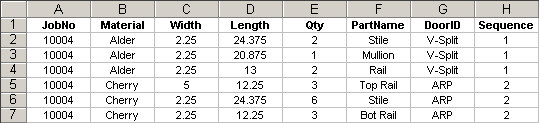

Comma Only – This export will break down the parts (Stiles, Rails, etc). This is the same export as the Comma Wquotes ForText except without quotations around the Parts, Material, and Door Style




GreCon Dimter – This export is used to connect to Grecon Dimter saws.




GreConDimterRename – This structure of this export is equivalent to the above spec, however in the Lookups > Export Names you can specify the name of the fields for the part names. This was done to shorten the size of the label printed on the door parts.




KendorSawFrameParts – This export links up to an Omga, Inc. optimizing saw. This will combine with a saw provided program to take Doorlister®’s CSV file and convert it into a saw readable format.




PrecisionWood – This export is a customized CNC routine that looks at specific UDF fields in the Item level to adjust its export data.




QuickCamCNC – Another export that requires the CNC-Flag be set on a Door/Front in order to export. This one happens to have quite a bit of information.




SemiColon – This is a generic specification that may be helpful for equipment not otherwise listed or in situations where you need an exported list of all parts including panels. This is the same export as the SemiColonWQuotes except without quotations around the Parts, Material, and Door Style.




Thermofoil_CSV – Yet another specification that requires the CNC-Flag to be set on a Door/Front in order to export.




TigerAllFrameParts – This export will link up to the TigerLink® software and is also known to work with Razor equipment as well.




TigerAllFramePartsWDoorSizes – A variant of the previous export. Adds Door Sizes.

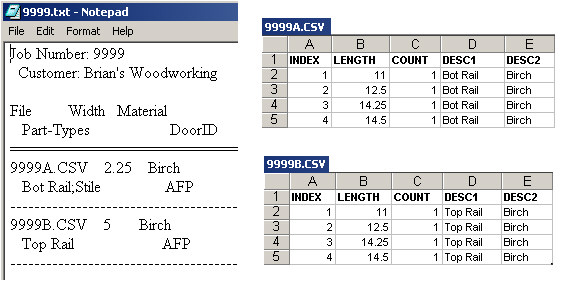

TigerSaw – This export was originally designed for an older version of TigerLink® software where a master list is created (the .txt file "9999.TXT") and separate .CSV files are made, one for each width of material (9999A.CSV and 9999B.CSV).
